                                                                                  9 x 20 HF Tailstock Camlock
Building Page 3

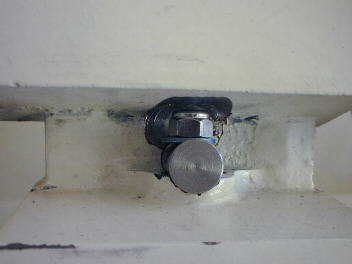

Completed cam with 5/16" hold down bolt in place.
I replaced the metric hold down bolt with a 5" long 5/16" grade 5 bolt
and a 5/16" locknut.  I also used a grade 5 washer (blue) between the locknut and cam.

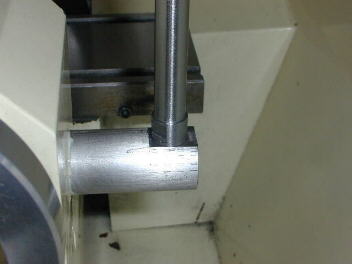

I drilled and tapped the cam to attach the release handle. ( 3/8" thread )

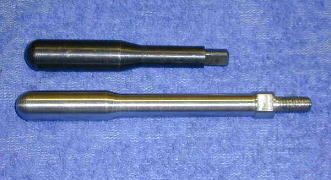

I more or less copied the supplied 9x20 chuck wrench.
The new handle is 5 1/2" long (end to end)

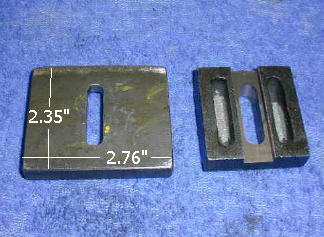

I also built a now clamping plate from 1/2" thick steel plate
the original clamping plate shown on the right did not fit very well.

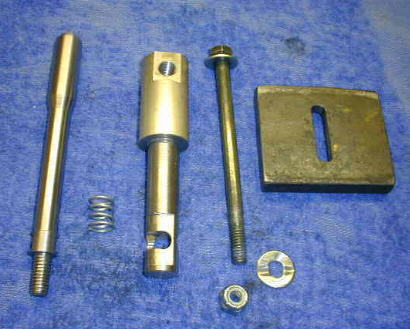

All the parts

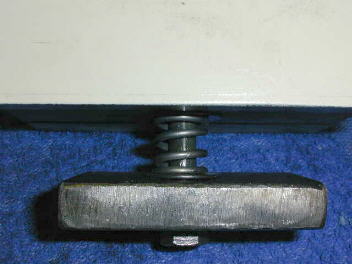

I placed a small spring in-between the lower clamping plate and the tailstock.
This helps release the clamping plate.

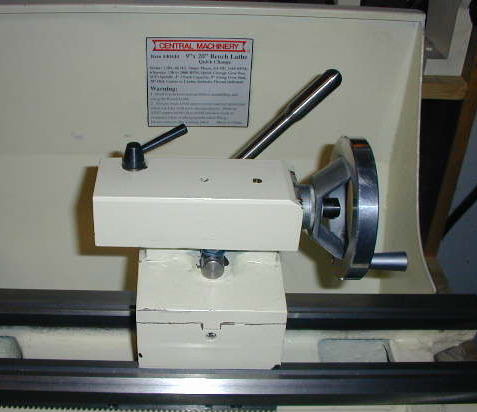

Completed !!
                                                                     Steve Bedair

Camlock Mod
Building Pics
Page 1
Building Pics
Page 2
Building Pics
Page 3
9 x 20 Lathe Site

I have included this information to give a better idea of how I built the camlock.
Please take note that while most of the 9x 20 lathes are similar they are not exact.
Therefore the measurements given are for reference only and may differ for your lathe.
