Megrez 80mm Goto Mount
Page 1

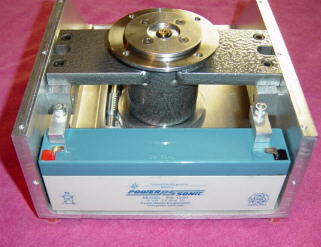

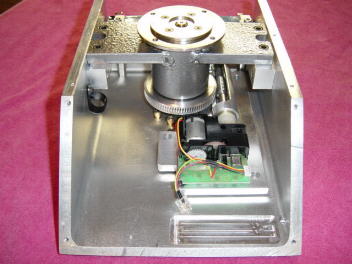

                 Front view of the Az motor / worm gear                                     12 rechargeable battery

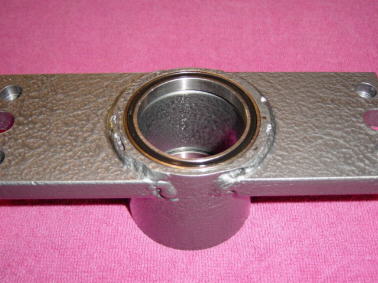

                 The Az bearing support is steel and uses 2 sealed                         Completed Az bearing / worm gear assembly
                 ball bearings

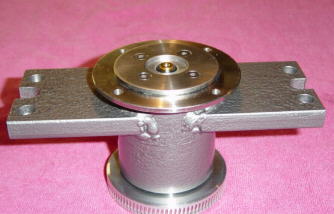

                 Az shaft with electrical connections                      95 tooth worm gear I hobbed myself shown here
                  through center

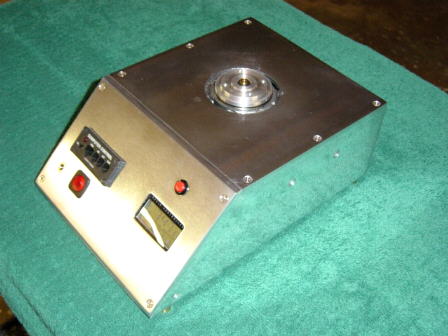

Completed base assembly
