Steve Bedair's
Homemade Band Saw Page
Longview , Texas
         4-2002

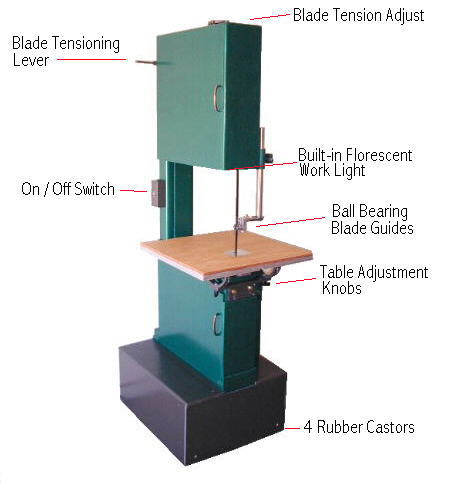

Band Saw Specifications



         Height:                77"
         Width:                 22"
         Depth:                31"
         Cutting Table:     20" x  21" 3/4" thick aluminum plate covered with 1/2" plywood.
         Motor:                1 1/2 Hp 110 VAC
         Blade Length:      130"
         Blade Speed        2400 FPM
         Weight:                Heavy
         Work light:          15 amp florescent dual tube
         Frame:                 Welded steel
         Exterior:              1/2" Sanded / Sealed / Painted plywood
         Colors:                Rust-oleum Hammered finish ( dark green & dark bronze )
