Saddle Lock
Indent Spring Added
Harbor Freight 9 x 20 Lathe
Previous Page

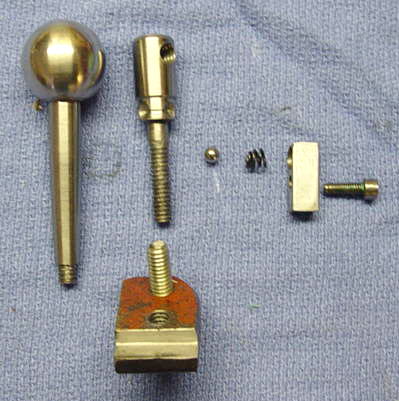

I also built a new 1/4"-20 attaching bolt. This has the indention's
for the spring loaded ball. The clamp is copied from the original
clamp and is threaded to accept the 1/4-20 bolt.
( I didn't have a metric tap or I would have used the original clamp )

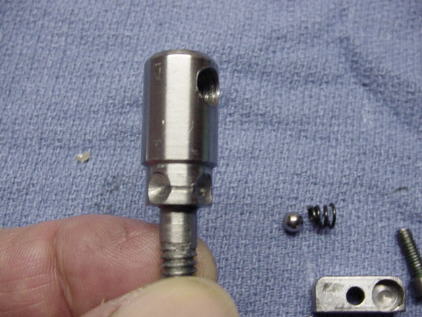

indention's for the ball bearing.

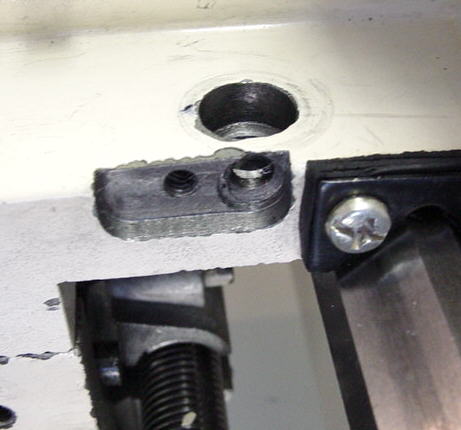

Close up of the holes drilled in the saddle.

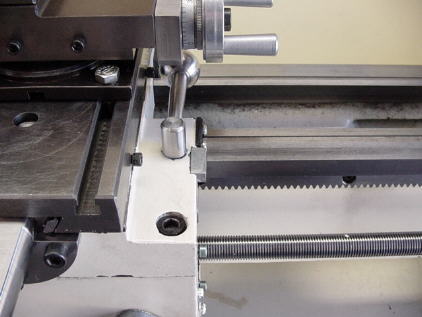

Position 1 unlocked

Position 2 unlocked

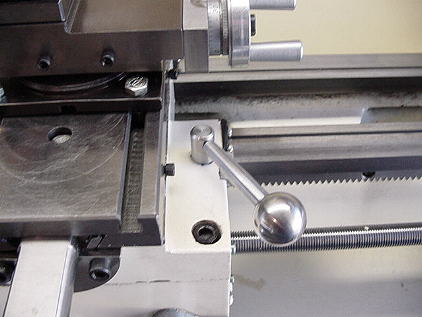

Position 3  Locked.
