Larger Cross Slide Handwheel
Harbor Freight 9 x 20 Lathe



If you do a lot of facing with you lathe you will appreciate a larger cross slide handwheel.
The stock handwheel is a little less than 2 3/8" OD. I increased the OD to 3 1/8"

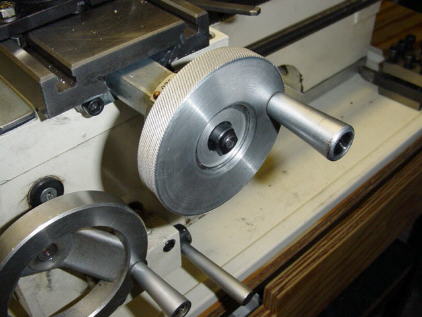

The larger handwheel shown above was turned from 1/2" aluminum plate and
is actually just pressed over the original handwheel. Easy to build and really helps.



Update: Here's a PDF drawing from Mike Massee (Thanks Mike!)
